mining screw air compressor,explosion-proof screw air compressor for mines,industrial air compressor for underground mining - Manufacturers and Suppliers in China

DLGF30/8-185 mining screw air compressor

Volume flow: 30m³/min Working pressure: 0.8Mpa Start mode: Direct or Y-△ start Cooling method: air cooling Type: Screw air cooling Power (kW) : 185 Motor speed r/min: 1485 Weight Kg: 3800 Dimensions (length × width × height) mm： 2850 × 1750 × 1900 (± 50) Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry
DLGF28/8-160 mining screw air compressor

Volume flow： 28m³/min Working pressure： 0.8mpa Motor power： 160kW Start mode: Direct or Y-△ start Compressor host structure type: coupling drive Cooling method: air cooling Transmission mode: AVR Type： Screw air cooling Motor speed r/min： 2950 Weight Kg 2700 Dimensions (length × width × height) mm： 2830 × 1530 × 1670 (± 50) Voltage： 380V (supports export voltage customization) Peak pumping speed: 10~90m³/min Driv...
Send Inquiry
DLGF24/8-132-Mining screw air compressor

Mining Product Safety Mark Certificate, issued by national authority. Volume flow: 24m³/min Working pressure: 0.8 MPa Start mode: Direct or Y-△ start Compressor host structure type: coupling drive Cooling method: air cooling Transmission mode： AVR Type： Screw air cooling Power (kW) ： 132 Motor speed r/min ： 1485 Weight Kg： 3800 Dimensions (length × width × height) mm： 3200 × 1830 × 2000 (± 50) Voltage： 380V (supports exp...
Send Inquiry
DLGF20/8-110 mining screw air compressor

Volume flow： 20m³/min Working pressure： 0.8 MPa Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Power (kW)： 110 Motor speed r/min： 2975 Weight Kg： 2570 Dimensions (length × width × height) mm： 2830 × 1500 × 1650 (± 50) Drive mode： Direct connection
Send Inquiry

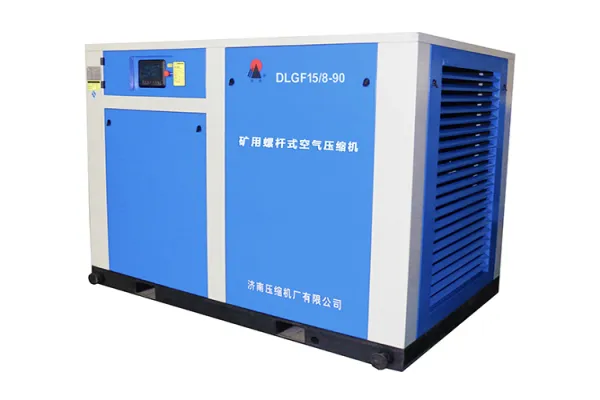

DLGF15/8-90 mining screw air compressor

Volume flow： 15m³/min Working pressure： 0.8mpa Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Power (kW)： 90 Motor speed r/min： 1970 Weight Kg： 2500 Dimensions (length × width × height) mm： 2400 × 1490 × 1830 (± 50) Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry

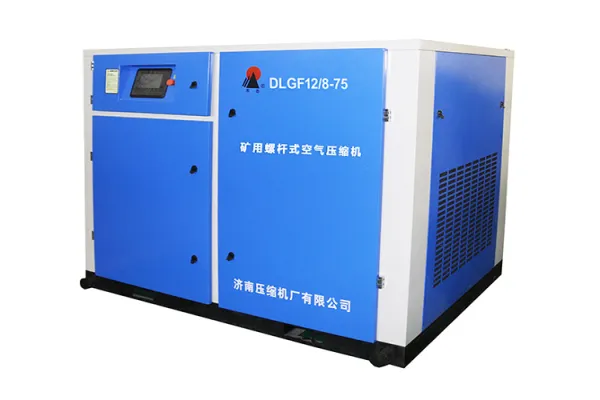

DLGF12/8-75 Mining screw air compressor

Volume flow： 12 m³/min Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Motor speed r/min： 1485 Weight Kg： 1500 Dimensions (length × width × height) mm： 1950 × 1275 × 1620 (± 50) Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry

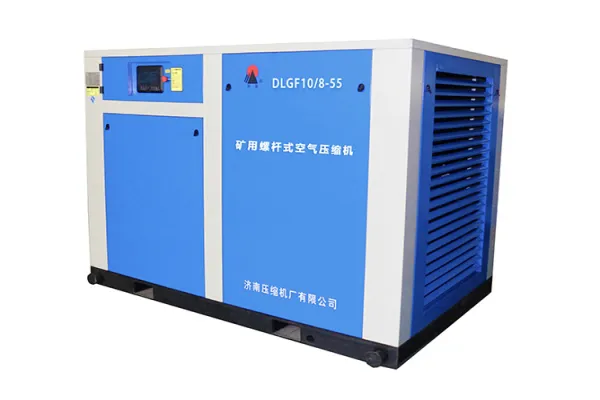

DLGF10/8-55 mining screw air compressor

Volume flow： 10m³/min Working pressure： 0.8 MPa Motor power： 55 Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry
DLGF7.5/8-45 mining screw air compressor (single stage)

Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission mode： AVR Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Power (kW)： 45 Weight Kg： 950 Dimensions (length x width x height) mm： 1430x895x1360 (±50) Voltage： 380V (supports export voltage customization)
Send Inquiry
DLGF3.5/8-30 mining screw air compressor

Covering a variety of products from 2.2 to 50m³/min. Advanced technology, compact structure, stable operation, energy saving, low noise, long life. Brand matching parts, reliable operation; advanced automatic control system, complete protection functions, safe and reliable use. Suitable for metal and non-metal mines. Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission mode： AVR Exhaust vo...
Send Inquiry

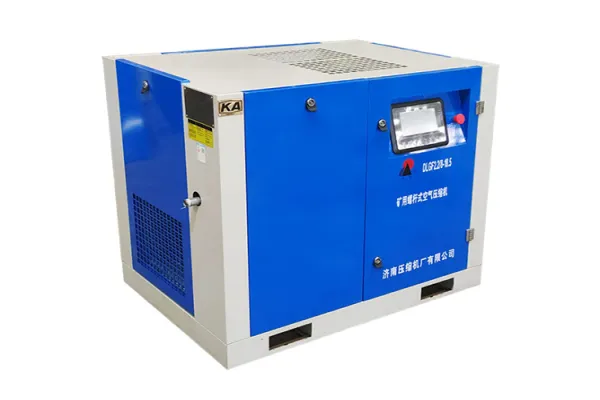

DLGF2.2/8-18.5 mining screw air compressor

Volume flow： 2.2m³/min Working pressure： 0.8mpa Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission： mode AVR Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 2.2 Power (kW) ： 18.5 Motor speed r/min： 2930 Weight Kg： 260 Dimensions (length × width × height) mm： 1130 × 750 × 960 (± 50) Voltage： 380V (supports export voltage customization) Drive mode：...
Send Inquiry
Mining screw air compressor (DLGF-series)

Working pressure: 0.8MPA～1.5MPA (support high pressure customization) Start mode: Direct or Y-△ start Compressor host structure type: coupling drive Cooling method: air cooling Transmission mode: AVR Type: Screw air cooling Exhaust volume/pressure (m³/min)/MPa: 2.2~50 Power (kW) : 18.5~280kW Motor speed r/min: 1485/2975 Voltage: 380V/6kV/10kV (support export voltage customization) Drive mode: Direct connection
Send Inquiry
Mining screw air compressor (DLGF-series)

Working pressure: 0.8MPA～1.5MPA (support high pressure customization) Start mode: Direct or Y-△ start Compressor host structure type: coupling drive Cooling method: air cooling Transmission mode: AVR Type: Screw air cooling Exhaust volume/pressure (m³/min)/MPa: 2.2~50 Power (kW) : 18.5~280kW Motor speed r/min: 1485/2975 Voltage: 380V/6kV/10kV (support export voltage customization) Drive mode: Direct connection
Send Inquiry
DLGF2.2/8-18.5 mining screw air compressor

Volume flow： 2.2m³/min Working pressure： 0.8mpa Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission： mode AVR Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 2.2 Power (kW) ： 18.5 Motor speed r/min： 2930 Weight Kg： 260 Dimensions (length × width × height) mm： 1130 × 750 × 960 (± 50) Voltage： 380V (supports export voltage customization) Drive mode：...
Send Inquiry
DLGF3.5/8-30 mining screw air compressor

Covering a variety of products from 2.2 to 50m³/min. Advanced technology, compact structure, stable operation, energy saving, low noise, long life. Brand matching parts, reliable operation; advanced automatic control system, complete protection functions, safe and reliable use. Suitable for metal and non-metal mines. Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission mode： AVR Exhaust vo...
Send Inquiry
DLGF7.5/8-45 mining screw air compressor (single stage)

Start mode： Y-△ start Compressor host structure type： coupling drive Cooling method： air cooling Transmission mode： AVR Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Power (kW)： 45 Weight Kg： 950 Dimensions (length x width x height) mm： 1430x895x1360 (±50) Voltage： 380V (supports export voltage customization)
Send Inquiry
DLGF10/8-55 mining screw air compressor

Volume flow： 10m³/min Working pressure： 0.8 MPa Motor power： 55 Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry
DLGF12/8-75 Mining screw air compressor

Volume flow： 12 m³/min Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Motor speed r/min： 1485 Weight Kg： 1500 Dimensions (length × width × height) mm： 1950 × 1275 × 1620 (± 50) Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry
DLGF15/8-90 mining screw air compressor

Volume flow： 15m³/min Working pressure： 0.8mpa Start mode： Direct or Y-△ start Cooling method： air cooling Type： Screw air cooling Exhaust volume/pressure (m³/min)/MPa： 0.8 Power (kW)： 90 Motor speed r/min： 1970 Weight Kg： 2500 Dimensions (length × width × height) mm： 2400 × 1490 × 1830 (± 50) Voltage： 380V (supports export voltage customization) Drive mode： Direct connection
Send Inquiry
