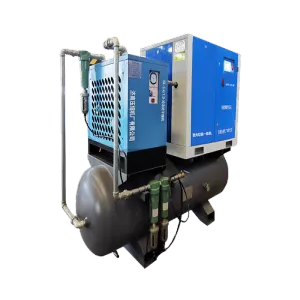

LGYT-3.4/10 integrated screw air compressor

Volume flow：3.4m³/min
Working pressure：1.0mpa
Cooling method：air cooling
Type：All-in-one machine
Power (kW)：33 (415V)
Voltage：380V (supports export voltage customization)
Drive mode：Direct connection

INQUIRY

Detailed Description

Features of Dongyue integrated Screw compressor:

1. The full-performance unit includes screw compressor, refrigerated dryer, precision filter, gas storage tank and other components in one.

2. After the air passes through the integrated system, the air quality is significantly improved and can meet the process needs of various enterprises.

3. Space-saving, compact compressed air system.

4. Integrated system, no need for additional drying system and pipeline installation.

5. Easy to use, flexible and lightweight, users can use high-quality compressed air by connecting to the power supply.

6. Multiple separation effects, external oil separator, easy to replace.

7. Using steel pipes and flexible connections, the pipes are resistant to shrinkage and expansion, and vibration.

8. Compact appearance, reliable performance and excellent economy.

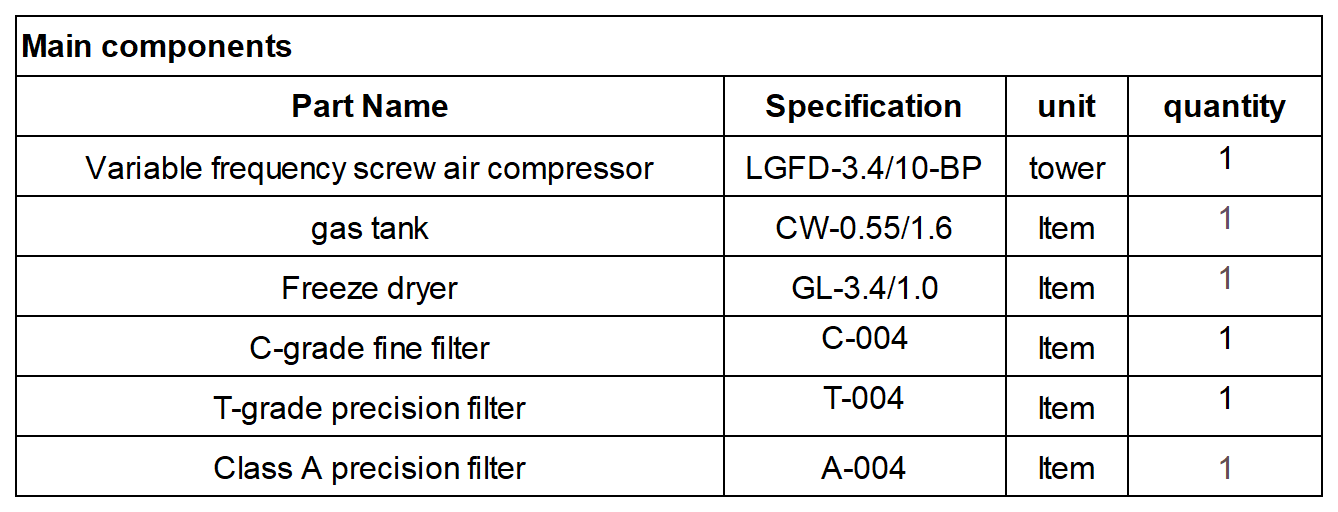

Integrated screw air compressor

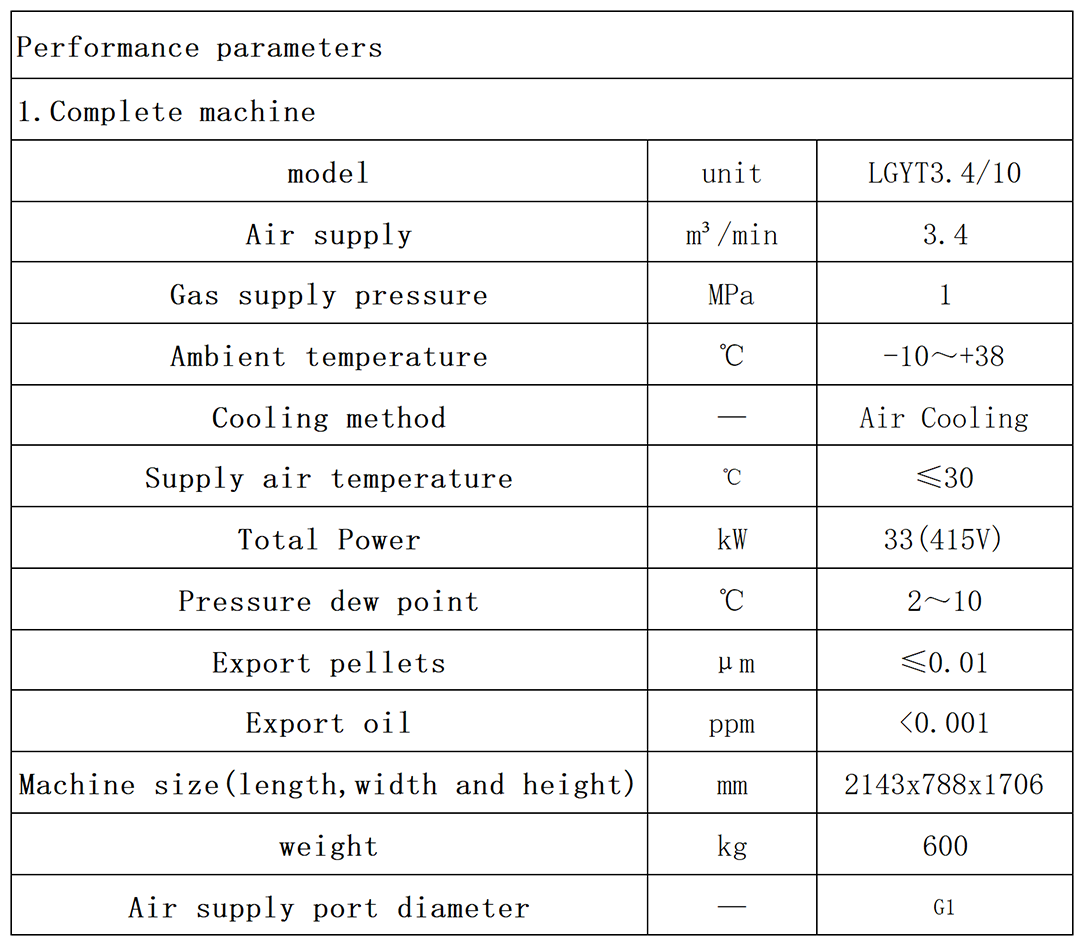

Integrated screw air compressor.jpg

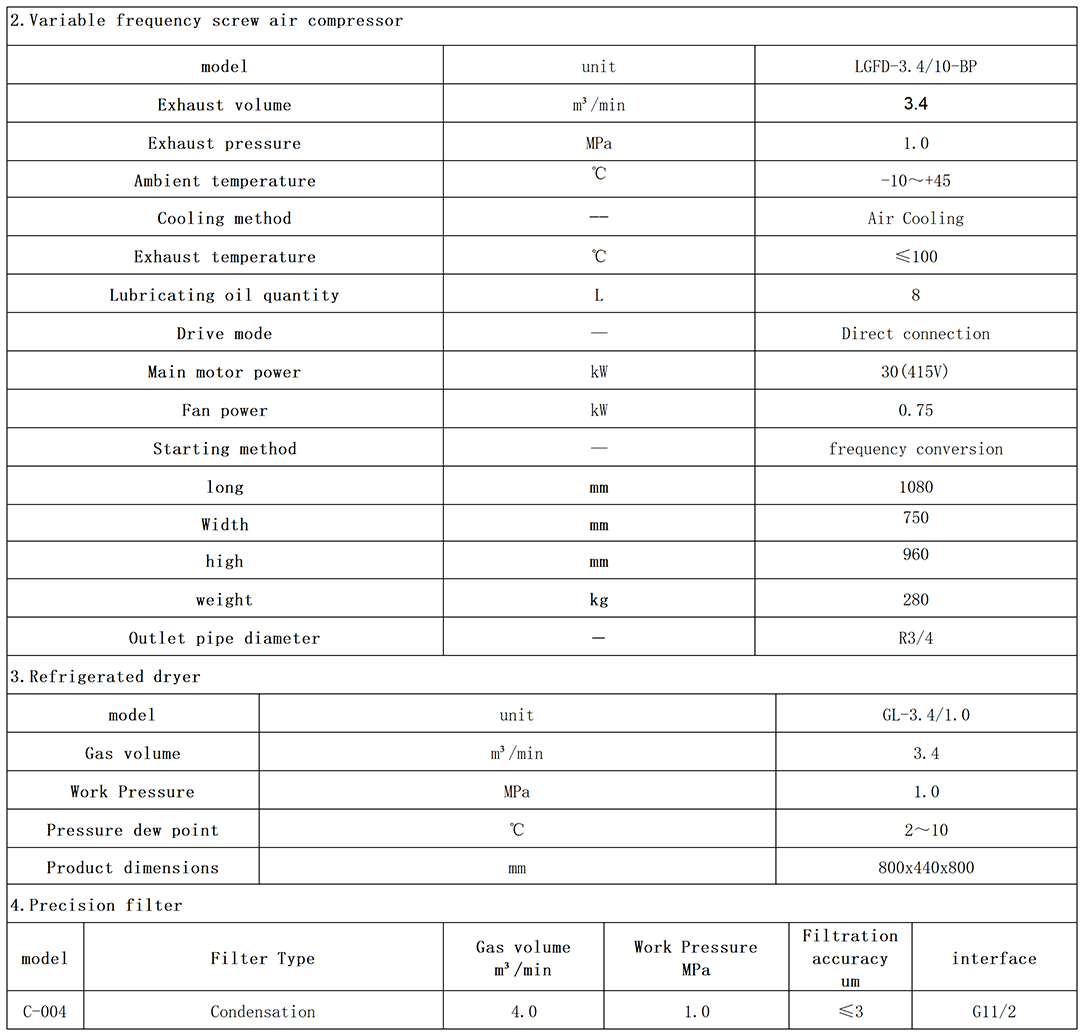

LGYT-3.4/10 integrated screw air compressor.jpg

Four core advantages


Reliable manufacturing, word-of-mouth reputation and reliable reputation

Design, production and management are all owned by Dongyue Air Compressor, and key components are uniformly provided by Dongyue Air Compressor

Products have passed ISO9000 quality system certification

Since its establishment more than 50 years ago, the company has been recognized by a large number of customers, with a good reputation and reliable reputation


High-efficiency performance

Dongyue air compressor original high-efficiency screw main engine, more energy-saving than similar products

Enlarged cooling area, high temperature resistant environment


Simple maintenance and convenient transportation

Humanized layout design, mature models are easy to maintain and repair.

Jinan Compressor Factory Co., Ltd. can directly receive and send import and export goods, relying on a mature logistics network to achieve fast customs clearance and global transportation, and ensure delivery timeliness.


Dongyue Air Compressor: Worry-free after-sales service, perfect service

Integrated services of pre-sales consultation, whole machine sales, maintenance and spare parts supply.

Technical support: Regular telephone return visits, timely spare parts supply, 24-hour quick response and reliable solutions, technical guidance and support at any time to ensure worry-free operation of your equipment.
